High damage threshold, near-infrared DMD spatial light modulator
The fastest and most powerful near-infrared DMD spatial light modulator
Jinha Fldiscovery Technology Co. ,Ltd Mainly engaged in the research and development of DMD spatial light modulators. After more than 10 years of technological accumulation, we have successfully developed a series of ultra high definition, ultra high speed, and ultra large capacity DMD spatial light modulator products, which can meet the application requirements of single pixel. We design and develop all products for imaging, optical communication, super-resolution biomicroscopy, compression sensing, digital lithography, digital lithography, computer direct plate making, PCB exposure, etc. We can also develop according to customer requirements; requirement.
Keywords: digital micro mirror spatial light modulator, DMD spatial light modulator, digital micro mirror device, DMD,
Digital micro mirror spatial light modulator
DMD spatial light modulator
Digital Micromirror Device Digital Optical Queue
Digital lithography

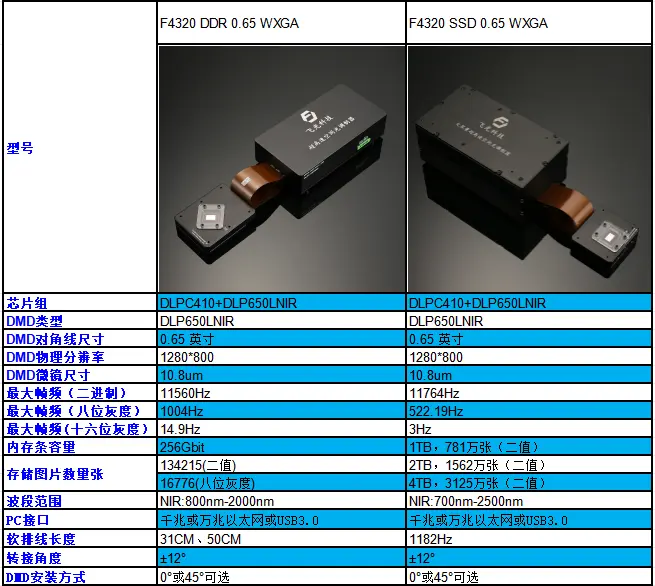

The high damage threshold near-infrared DMD spatial light modulator is designed using the TI near-infrared DLP650LNIR chipset and Xilinx high-performance FPGA. The data transmission rate can reach 12.5 Gbits, and the maximum binary frame rate for full screen display can reach 11764 Hz. According to your application requirements, you can choose 8GB, 16GB, 1T, 2T or 4T storage capacity, as well as Gigabit Ethernet, 10 Gigabit Ethernet, or USB 3.0 communication interface.
DLP650LNIR is equipped with Corning Eagle XG material window, with optimal wavelength coverage of 850nm-2000nm, and a transmittance greater than 97%.
DLP 650lnir can withstand 160W of continuous optical power in the wavelength range of 950nm to 1150nm, meeting the requirements of metal 3D printing.
Our ultra-high speed DMD Spatial light modulator is designed with Xilinx High performance-to-price FPGA and supports USB 3.0 or Gigabit Ethernet or 10-gigabit Ethernet interfaces, using DDR3 memory or multiple solid-state disk cache image data, 1bit-16bit gray level and frame rate adjustable, binary graphics frame rate up to 11764Hz. At the same time, the product supports internal and external synchronous triggering, allowing precise synchronization with the peripheral equipment. The Gigabit Ethernet is a common interface in the industry, which has good anti-interference and stability. At present, all Windows and Linux operating systems support the interface, which ensures the compatibility of the DMD Spatial light modulator. On the PC side, different devices are distinguished by different IP addresses, and real-time control of multiple DMD Spatial light modulator can be achieved by a host computer software. Applications: SLA 3D printing, digital lithography, single pixel imaging, spectral imaging, quantum imaging, high-speed DMD Spatial light modulator not only provide multi-thread DEMO control software, but also provide several DEMO codes based on dynamic function library DLL, including C + + , LabVIEW, MATLAB, Python and other programming language versions of the DEMO, to facilitate customer secondary development.
