MINI F4320 DDR 0.7

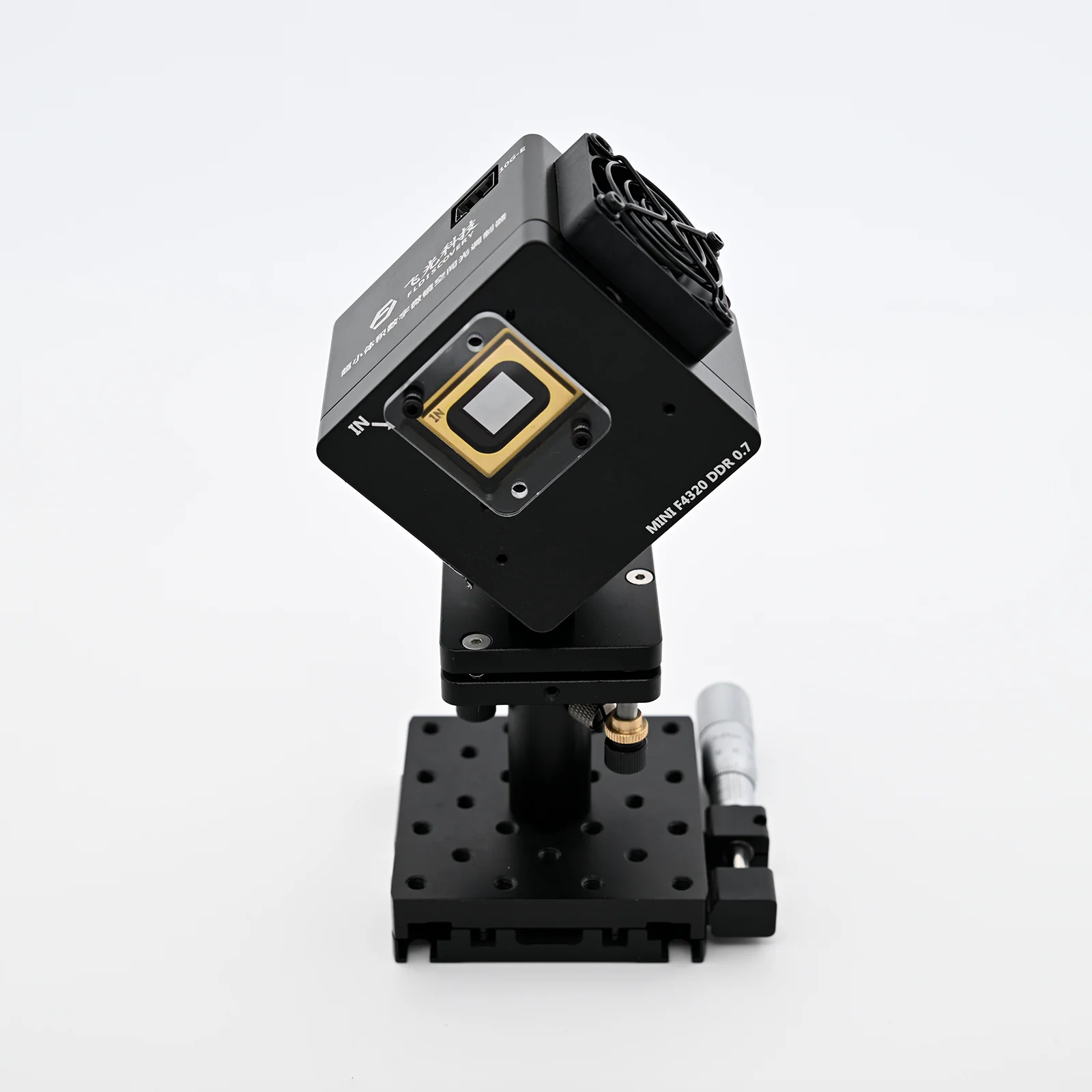

The ultra-compact digital micromirror spatial light modulator adopts a 4-layer stacked structure design. It is the smallest in size and fastest in speed among digital micromirror spatial light modulators in the industry, making it particularly suitable for application scenarios with strict requirements on device dimensions.This series of products is designed using Xilinx high-performance FPGA, which can maximize the advantages of DMD’s fast turnover speed, and can meet the application requirements of maskless lithography, LDI, computer direct imaging, computational imaging, digital lithography, super-resolution microscopy, and other fields. The ultra-compact digital micromirror spatial light modulator uses TI advanced optical control chips, designed for industrial and scientific research fields, supporting accurate internal and external synchronization signals, and being able to closely cooperate with cameras, motion platforms, etc.

Consult Now
Product Categories: Ultra Compact Digital Micromirror Spatial Light Modulator

Product Details

ModelMINI F4320 DDR 0.7
ChipsetDLPC410+
DLP7000 or DLP5500
DMD TypeDLP7000 or DLP5500
DMD Diagonal Size0.7 inch or 0.55inch
DMD Physical Resolution1024*768
DMD Micro Mirror Size13.68um or 10.8um
Memory Module Capacity128Gbit
Band RangeVIS:400nm-700nm
Display ModeGlobal DisplayLocal Display（337 Lines）
Maximum Frame Rate (Binary)26867Hz50kHz
Maximum Frame Rate (8-Bit Grayscale)1683Hz2193Hz
Maximum Frame Rate (10 Bit Grayscale)691Hz784Hz
Maximum Frame Rate (12 Bit Grayscale)217Hz227Hz
Maximum Frame Rate (16 Bit Grayscale)15Hz15Hz
Number Of Stored Pictures87380(Binary)199133(Binary)
10922(8-Bit Grayscale)–
Minimum Number Of Vertical Scan Steps1(Line)1(Line)
Maximum Frame Rate For Vertical Scan26867Hz50kHz
Real-time Maximum Frame Rate (Binary) Of GigaBit Ethernet (Or USB3.0)1182Hz2694Hz
Real-time Maximum Frame Rate(8-Bit Grayscale） Of GigaBit Ethernet (Or USB3.0)147Hz–
10 GigaBit Real-time Maximum Frame Rate (Binary)(Optional)11825Hz26949Hz
10 GigaBit Real-time Maximum Frame Rate (8-Bit Grayscale)(Optional)1478Hz–
PC InterfaceGigabit or 10 Gigabit Ethernet or USB3.0

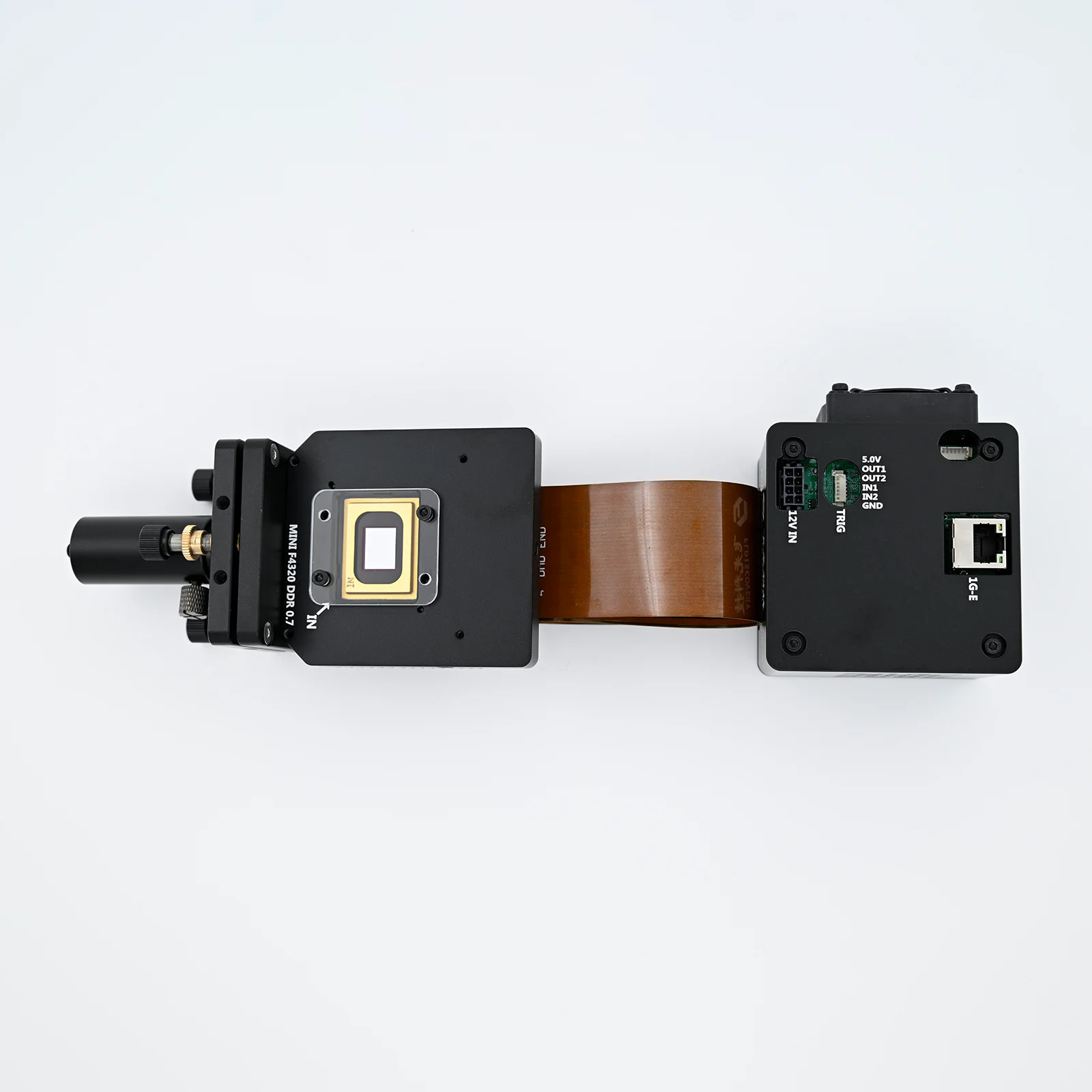

Length Of Flexible Cable31CM、15CM、NONE
Transition Angle±12°
DMD Installation Method0° or 45° optional
Gray Scale1-16bit grayscale level can be set, and frame rate can be set
Software SupportSupport precise control of a single micro-mirror and lock at any time. Support windowed display; Support variable sequence playback; Supports vertical scanning playback (scrolling playback); Support hardware triggering; Supports secondary development, provides dynamic connection, SDK and other files, and offers demos in matlab, labview, Python, C++ and other formats.
On-board MemoryOne DDR3 memory module, capacity 128Gbit
Trigger InterfaceTwo output trigger IO, one input trigger IO and one idle interface, 5.0V level standard
Application AreaDigital imaging lithography, laser marking, computer direct plate making printers, light field modulation, maskless lithography, computational imaging, LDI, super resolution microscopy, etc
