FLPG2L25HA is a cost-effective FPGA development board built around the PG2L25H_MBG325 FPGA from the Logos-2 series developed by Shenzhen Pango Microelectronics Co., Ltd. Tailored for scenarios including industrial applications, prototype verification, education, and scientific research, it integrates comprehensive hardware configurations, robust expansion capabilities, and a user-friendly development experience, serving as an optimal platform for FPGA introductory learning, advanced development, and practical project implementation.
| Model | FLPG2L25HA |
| MCU | PG2L25H_MBG325 FPGA from the Logos-2 series |
| Size | 100mm*83mm |
| Core Resources | 26,700 logic cells and integrated 55 blocks of 36 Kb Block RAM memory resources |
| Clock | GPLL+PPLL+FPLL(3+3+0) |

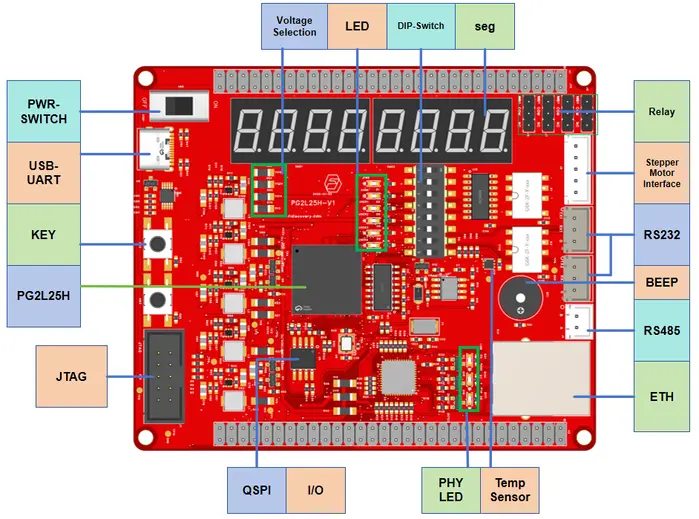

| Category | Name | Specifications/Parameters |
| Communication & Networking | 10/100/1000Ethernet Networking | 1 |
| RS232 | 2 | |
| RS485 | 1 | |
| USB to UART | 1 | |
| Functional Peripherals | Temperature Sensor | 1 |
| CA-SEG | 2 | |
| Relay | 2 | |
| Stepper Motor Interface | 1 | |
| Other | 1 BEEP、1 PWR-LED、1 DONE-LED、4 USER-LED、2 KEY、1 DIP Switch (8-position) | |
| Expansion Interface | Expanded I/O | 92(Contains 10 pairs of high-speed differential signal pairs) |
| Expanded Power | Reserve 3.3V and 5V power supply pins | |
| Debugging Interface | JTAG | CON2X5-2.54mm,online debugging and program flash |
- Industrial Control
- Smart Hardware Prototype Validation
- IoT Device Development
- University FPGA Instruction
- Research Project Validation
